NEWACALOX 8786D 750W Blue Digital 2 In 1 SMD Rework Soldering Station Repair Welding Soldering Iron Set PCB Desoldering Tool
NEWACALOX 220V 750W Blue Digital 2 In 1 SMD Rework Soldering Station Repair Welding Soldering Iron Set PCB IC Desoldering Tool
Format:
| Output Power | 760W (MAX) |
| Input Voltage | AC 220V 50/60HZ |
| Outer Casing Material | Steel |
| Noise | ≤45dB |
| Appearance Volume | 160*95*141mm |
Rework Hot Air Gun:
| Output Power | 700W (MAX) |
| Input Voltage | AC 220V 50/60HZ |
| Temperature Range | 100°~480° |
| Gas Flow | 120L/Min (MAX) |
| Heat Gun Heating Core | Nickel Wire Metal Heating Core |
| LCD Display | Yes |
Soldering Iron:
| Output Power | 60W(MAX) |
| Input Voltage | AC 24V 50/60HZ |
| Temperature Range | 200°~480° |
| Soldering Iron Heating Core | Ceramic Heating Core |
| Soldering Iron Tip of Grounding Resistance | Lower than 2Ω |
| LCD Display | Yes |
Feature:

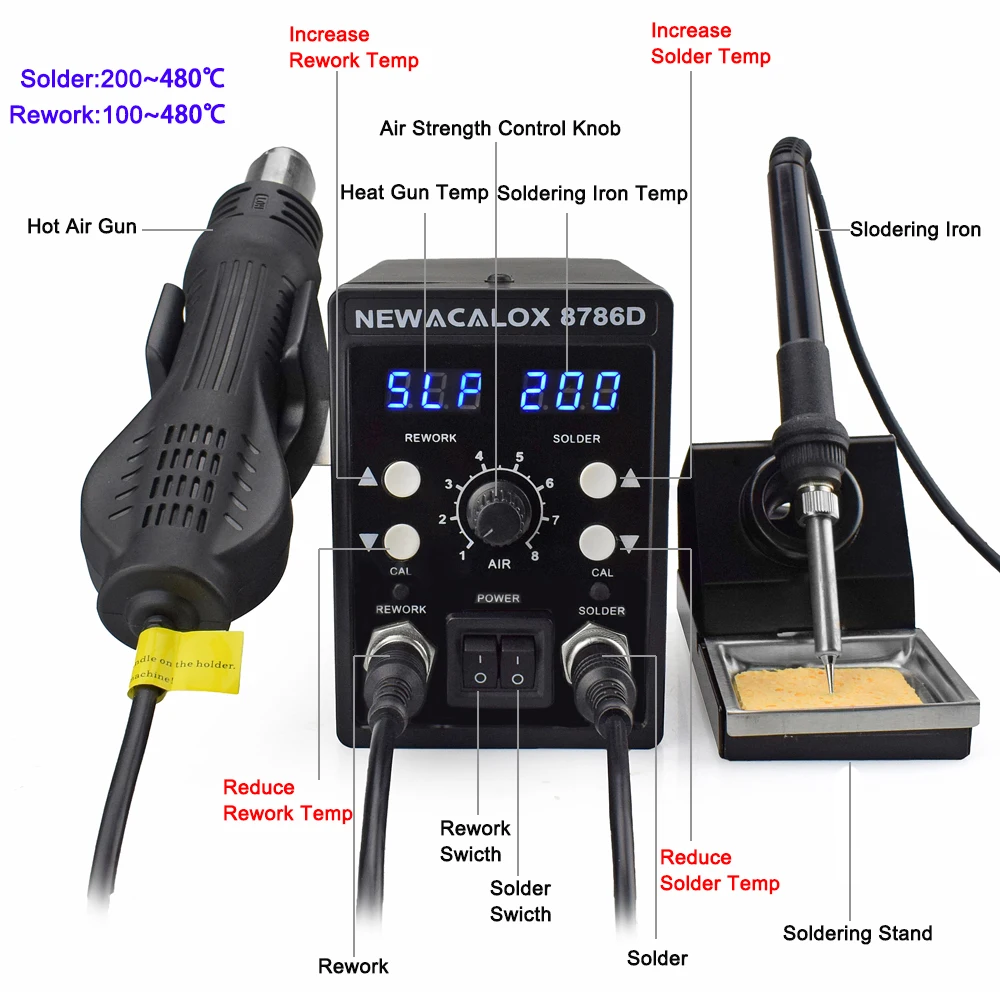

1.SMD Rework Soldering Iron temperatures all can be displayed on the LCD screen.
2.Use PID microcomputer control,warming-up quickly,to the setting temperature only within 3-5 seconds,Use the brushless fan,and long life and low noise.
3.Digital Blue LED display,unique appearance,thickened metal plate, small size, anti-fall, anti-impact.
4.Automatic cooling function for effectively prolonging the heater\'s life and protecting the hot air gun.
5.Safely remove BGA-IC,keep pins intact,Much more safe and reliable,Blowing PCB will not make it blister
6.Essential product for cell phone repair, laptop repair, circuit boards, etc,Suitable for unsoldering multiple components,such as SOIC CHIP QFP PLCC and BGA etc (especially for flat cables and cable connectors).
7.Applicable for hot contraction heating,depainting,degluing,defrosting,Preheating and rubber soldering and so forth.
Note:
Due to the handle have Precision Horizontal Sensor,When you pick up the handle ,tube nozzle toward up, the gun will automatically step into standby model.when the temperature is less than 100 Degrees,the screen display(SLP),the equipment is on standby model,after temperature of heating element is less than 70°,it will automatically stop rotation,it use for protecting the hot air gun life.

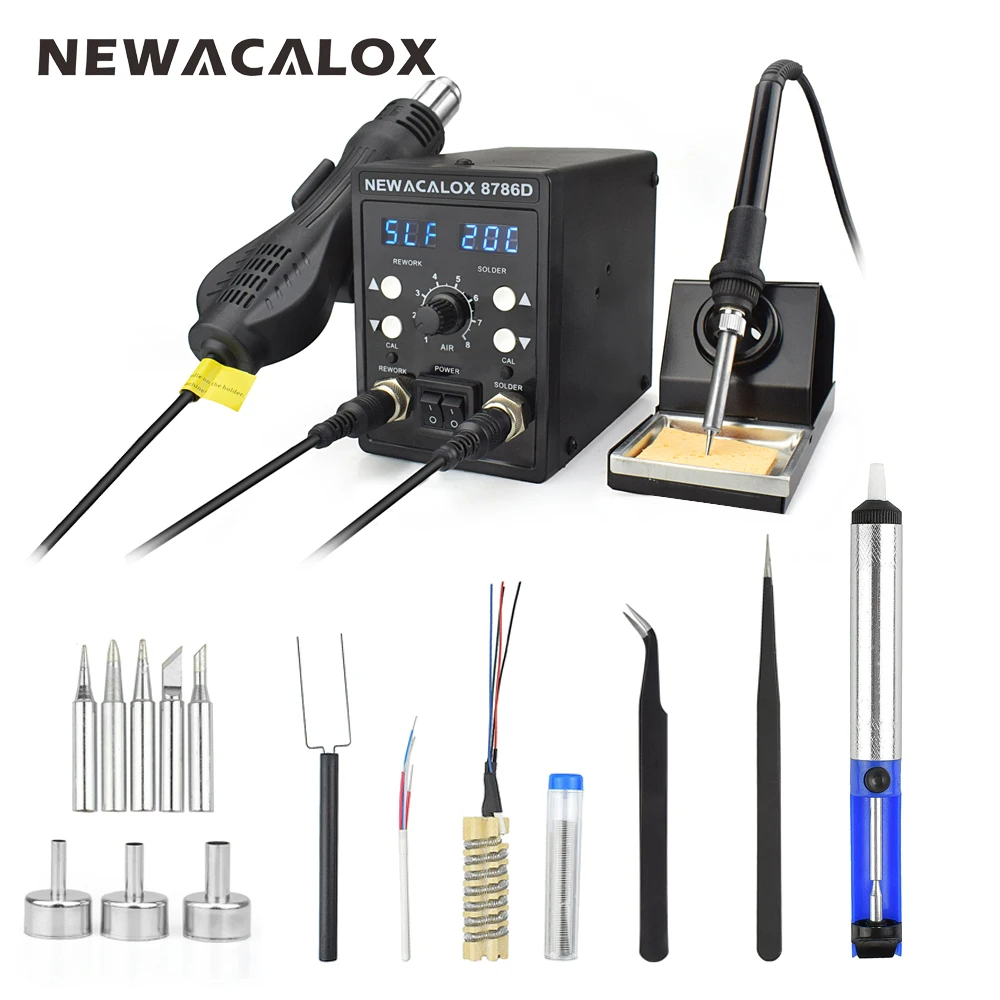

Package Included:
1 x 8786 Soldering Station
1 x Hot air gun handle
1 x Soldering Iron
2 x Tweezers(fine tip curved,fine tip straight )
1 x IC Extractor
1 x Soldering stand(with Cleaning Sponge)
1 x Desoldering Pump
1 x Nickel Wire Heating Core
1 x Power cord * 1 EU(length:100mm)
3 x Nozzles( 3.2mm,5mm,8mm)
1 x Solder Wire(Tin/lead:40% Rlux:1.8%,Dia:1.0mm,N.T:10g)
5 x Soldering Tip((I K B 3C 1.6D)
1 x English Instruction Manual
